COMMISSION EDITION // ARCHITECTURAL LUMINAIRE

LUMEN 01

A modular suspension light system engineered with articulated champagne brass knuckles, an anodized matte black aluminum spine, and mouth-blown smoked borosilicate glass diffusers emitting 2700K warm interior illumination.

MEDIA LAYER 01 // HIGH-RESOLUTION PHOTOGRAPHY

Material & Optical Truth

Independent studio imagery captures the exact finished product: brushed champagne brass joint articulation, optical glass sheen, and contextual installation above a dark granite surface.

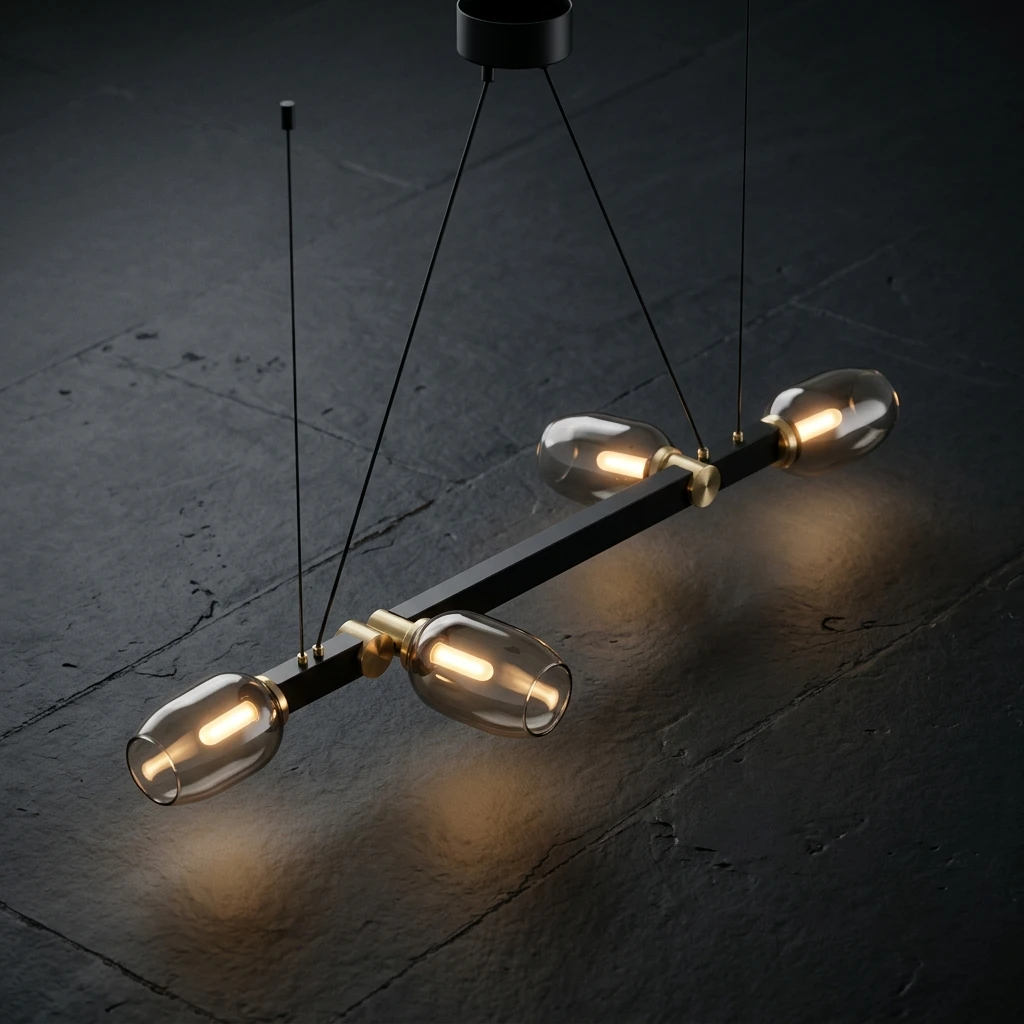

FIG 1.0 // THREE-QUARTER HERO PERSPECTIVE VIEW

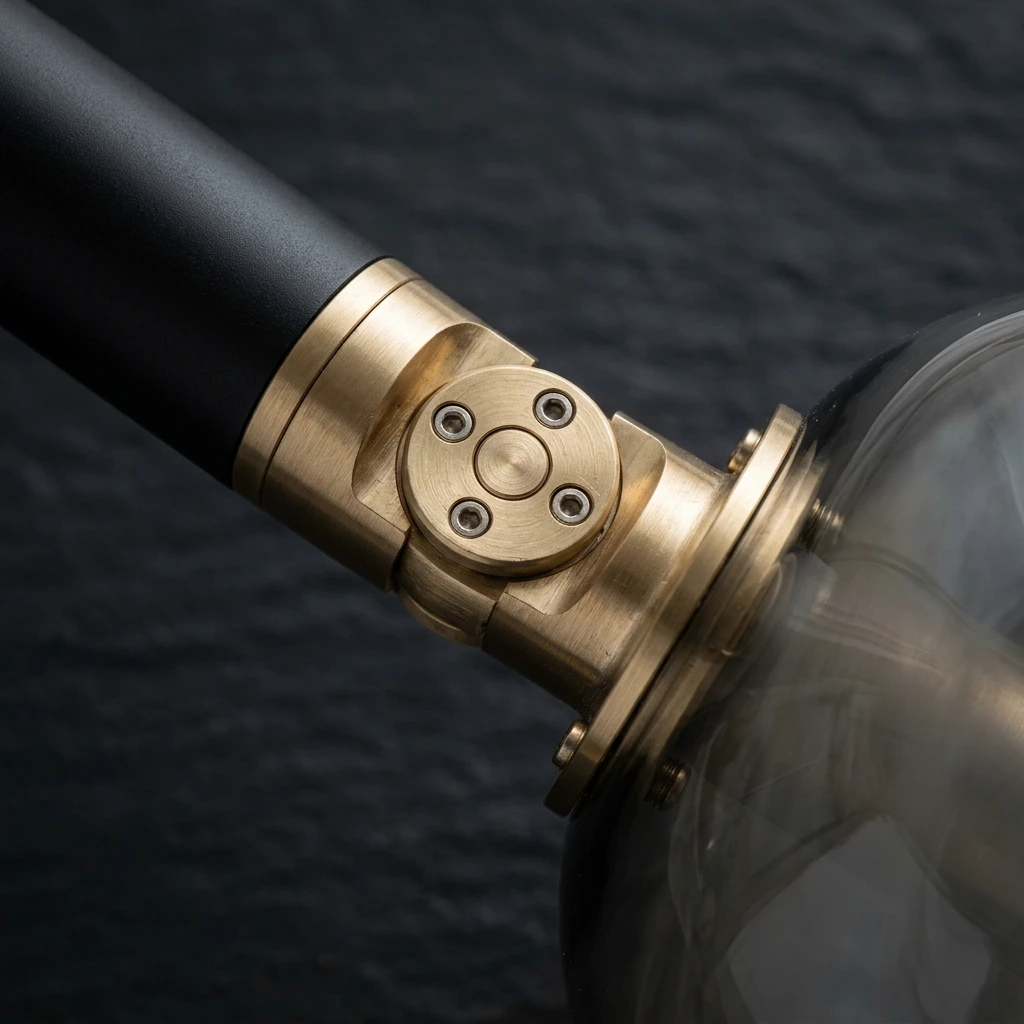

FIG 1.1 // MACRO CHAMPAGNE BRASS KNUCKLE JOINT & MICRO-FASTENERS

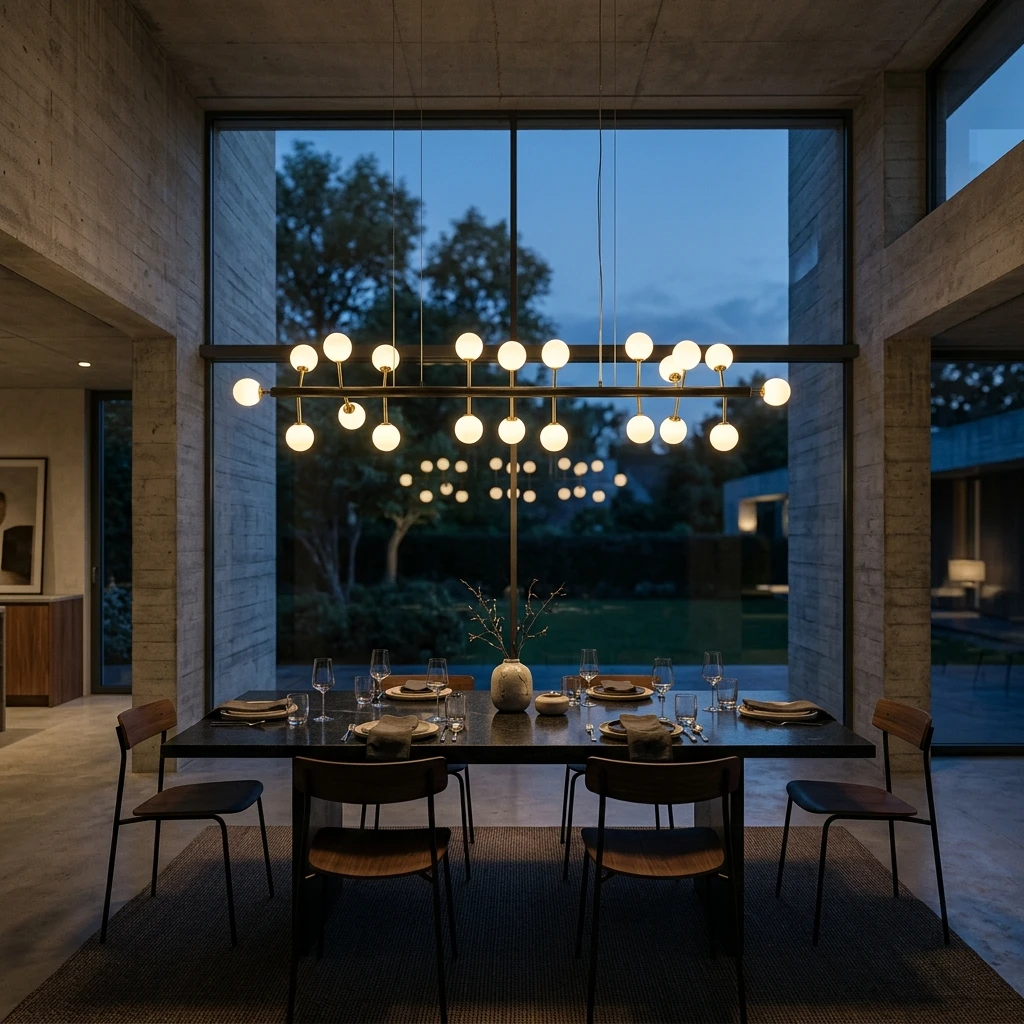

LUMEN 01 Architectural Context Installation

FIG 1.2 // ARCHITECTURAL CONTEXT INSTALLATION IN MINIMALIST INTERIOR

MEDIA LAYER 02 // REAL-TIME 3D & OPTICS

Articulated Geometry & Dimming

Interactive Three.js 3D engine models the structural spine, articulated knuckle joints, and 4 optical glass diffusers. Adjust the color temperature and dimming intensity in real time.

DIMMING & COLOR TEMPERATURE

INTENSITY: 100% | CCT: 2700K

3,200 lm

TOTAL FLUX OUTPUT

CRI 98

COLOR RENDERING INDEX

HONEST SPECIFICATION BOUNDARIES

Engineering Data Integrity

Verified client manufacturing parameters separated from optical simulation estimates and site-specific load calculations.

PARAMETER	SPECIFICATION VALUE	STATUS
Spine Length & Material	1,200mm Anodized Matte Black Aluminum	CLIENT CONFIRMED
Articulation Joints	3 x Champagne Brass 360° Knuckles	HARDWARE SPECIFIED
Optical Diffusers	4 x Mouth-Blown Smoked Borosilicate Spheres	MATERIAL VERIFIED
Luminous Flux Output	3,200 lm @ 38W (DALI-2 Dimmable)	LABORATORY ESTIMATE

COMMERCIAL CONVERSION

Start a project

Request custom finish samples, BIM/CAD files, or a site-specific installation review from Joe Asare Studio.

LUMEN 01 is an illustrative concept for demonstration. Specifications, materials, performance, compliance, availability and pricing require verification.
